Explorer 400 Atv Quad Bike

    Explorer 400 Atv Quad Bike

    400cc water cooling engine, single cylinder, 4 stroke, electric start, carburetor version, central shaft drive, front and rear double A arm suspension, front and rear hydraulic disc brake, iron wheel, front tires: 25×8-12 rear tires: 25×10-12, 2WD/4WD, with front and rear rack.
  • Share:
  • Contact Us Inquiry

Beach Buggy.png

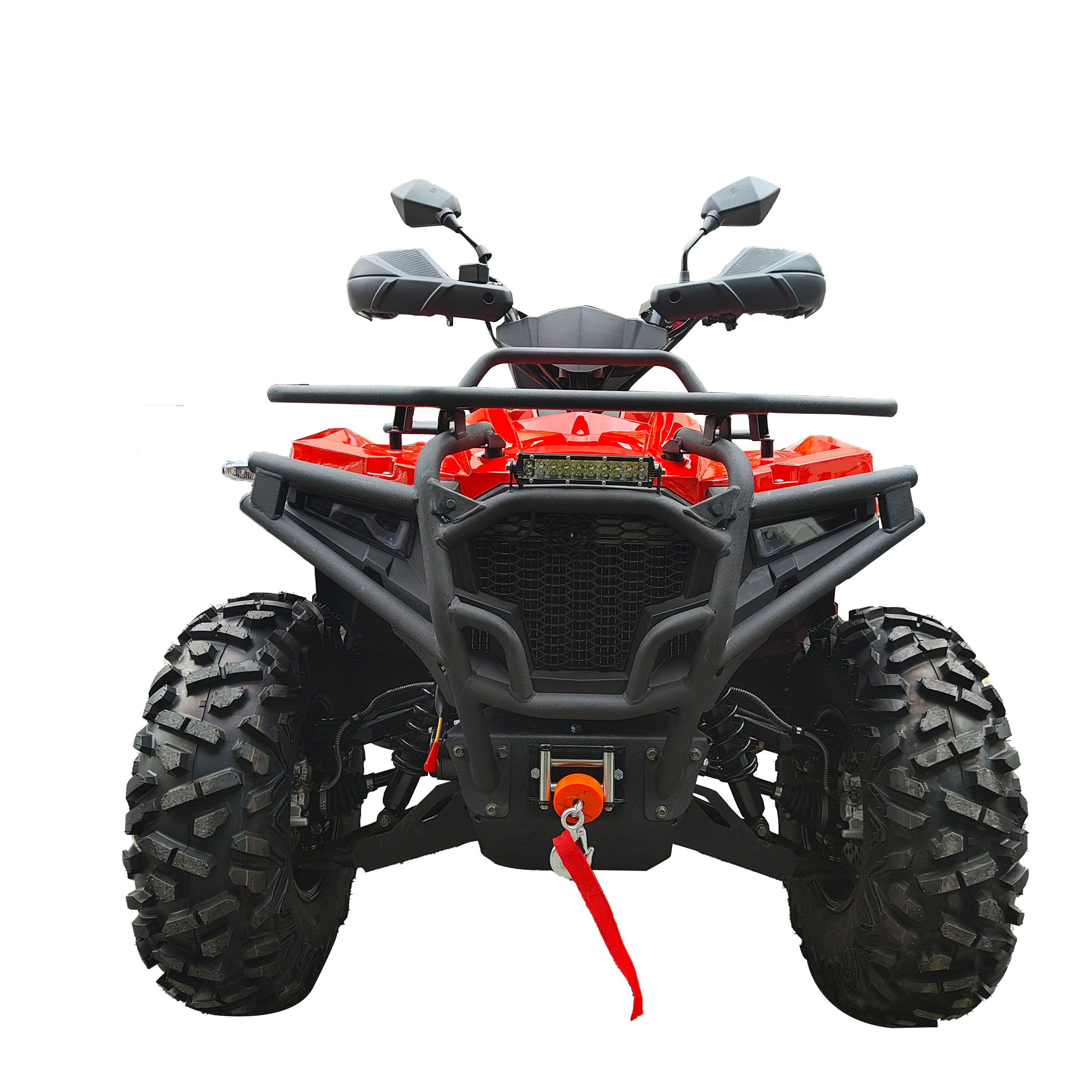

4-Wheel Dune Buggy.jpg

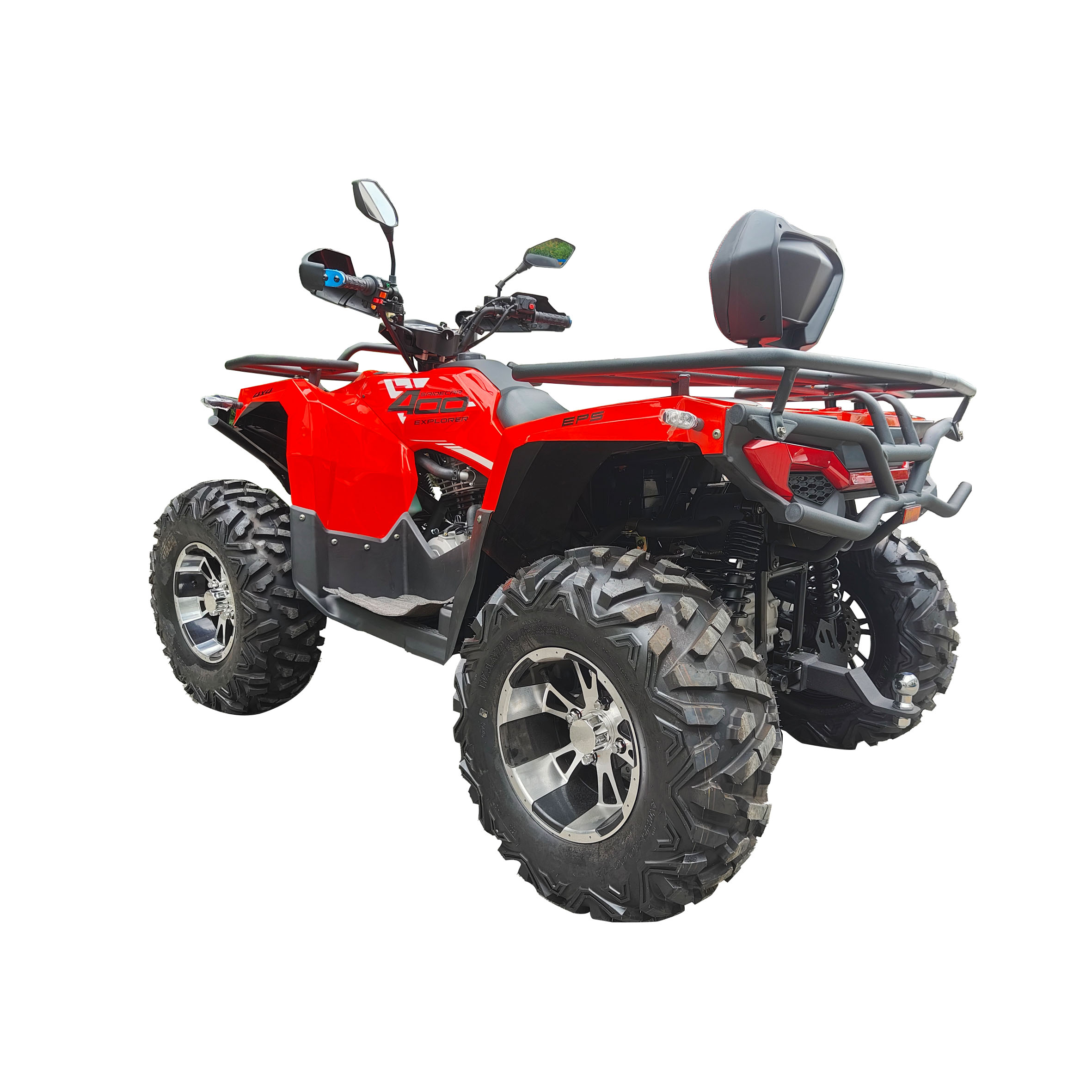

300cc Atv.jpg

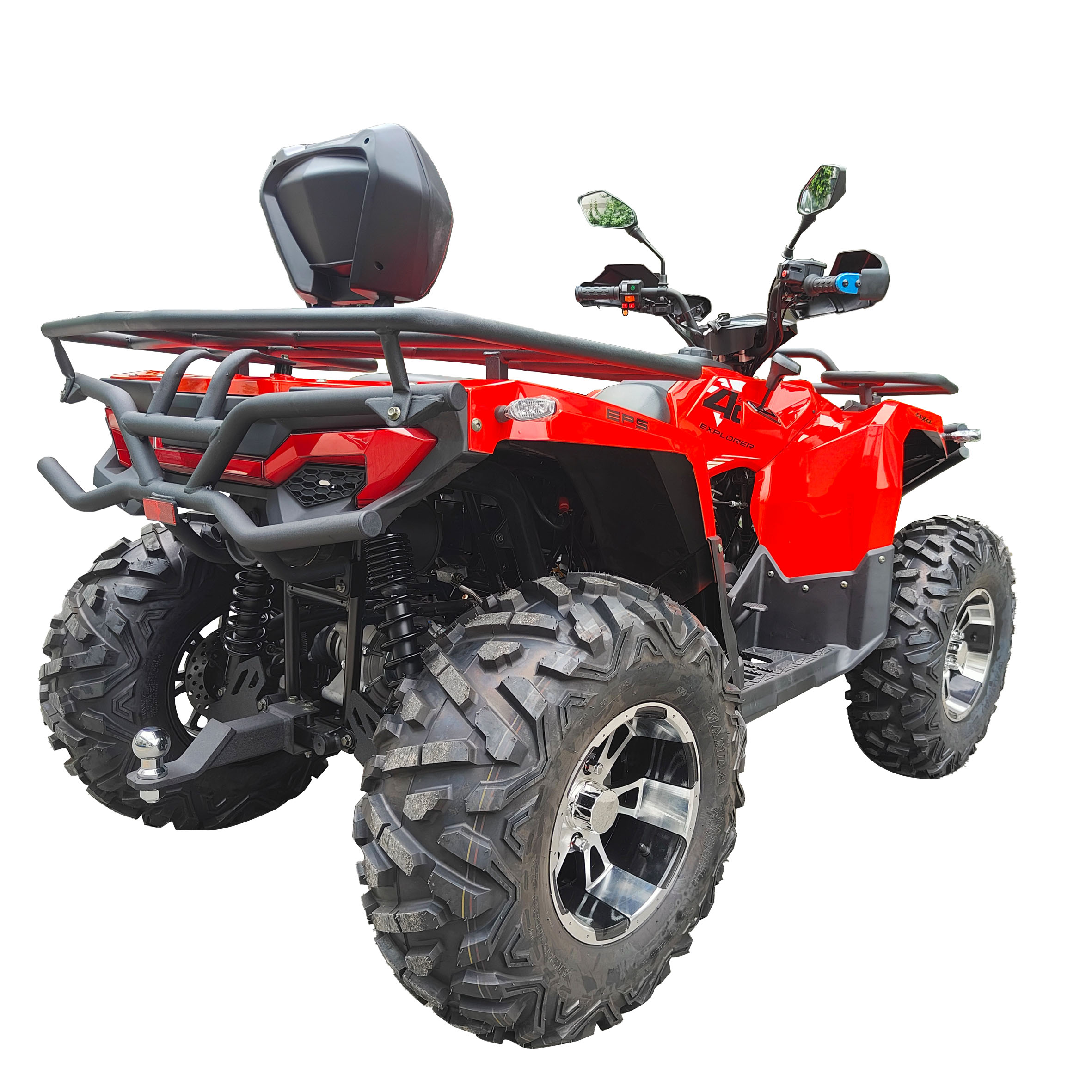

350cc atv.jpg

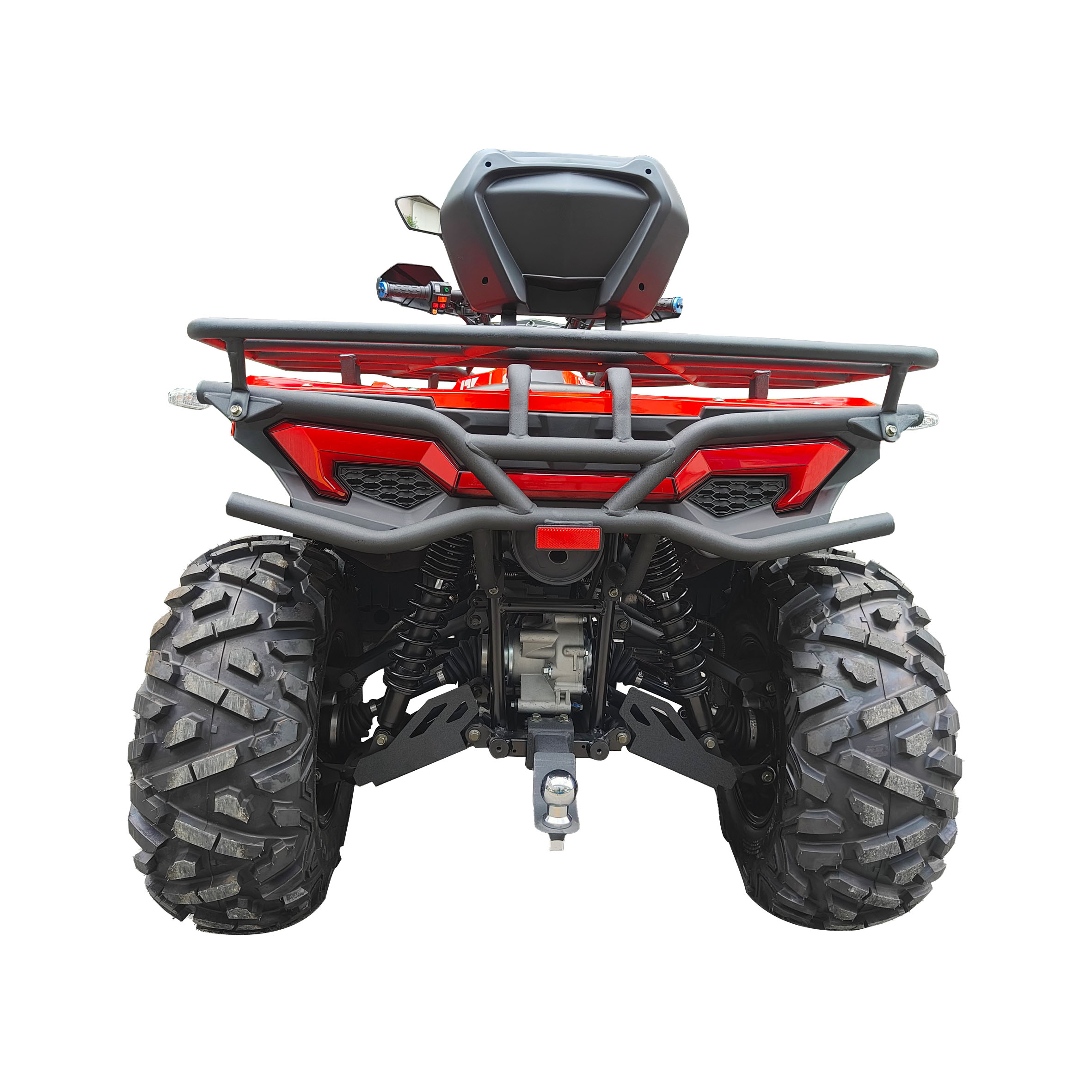

400cc atv.jpg

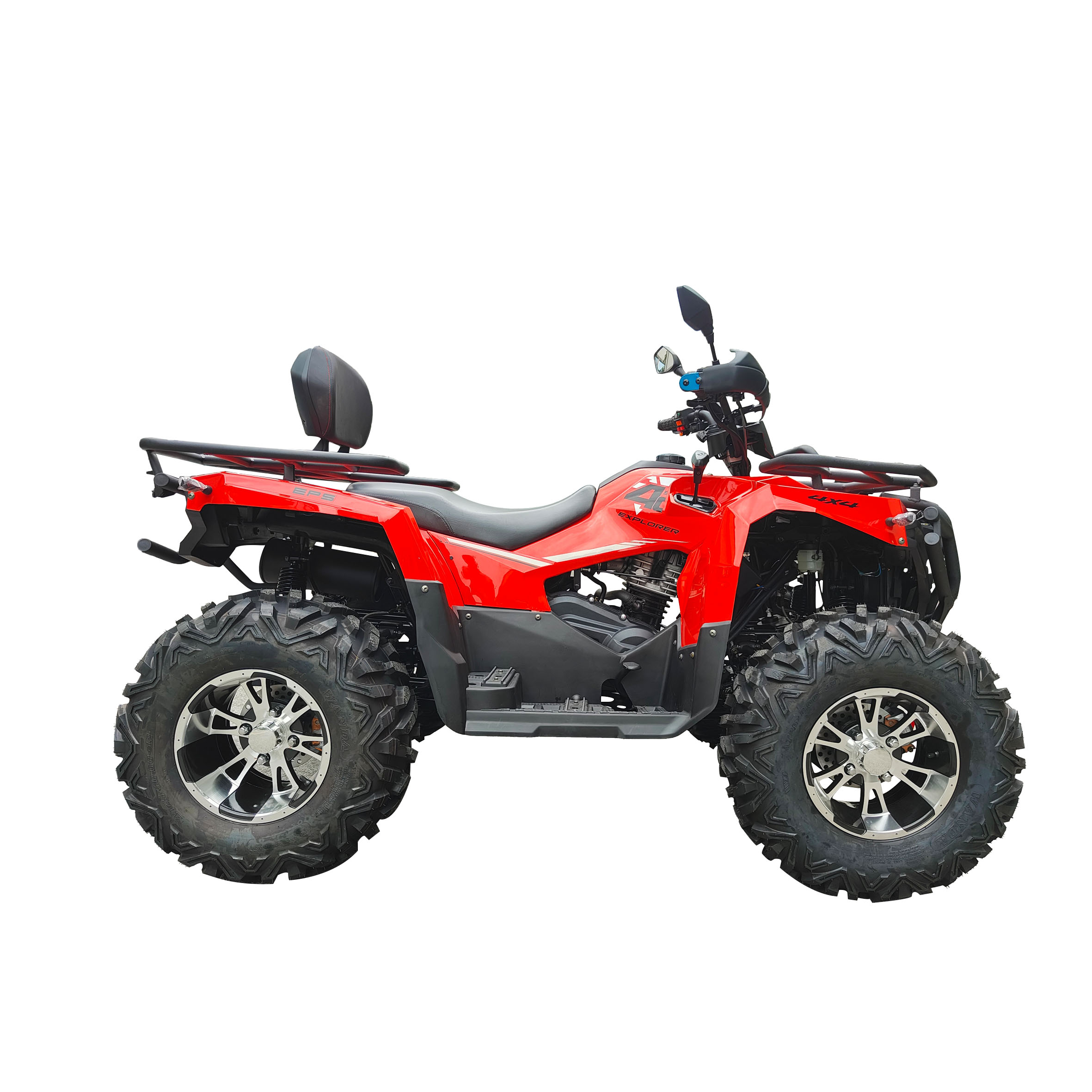

Beach Buggy.jpg

Kids ATV.jpg

utv Parts.jpg


CategorySpec.
ENGINEType (Cooling, stroke, configuration)Single cylinder, 4 stroke, water cooling, gear F-N-R
Displacement (cc)340ml
Horse power22HP
Bore x Stroke (mm)77×73
Compression Ratio10.3:1
Max. Power Output (kW/ rpm)16.5/5300
Max. Torque (Nm/ rpm)30/4500
Idling speed (rpm)1500
V-Max (km/h)75
Oil Capacity (L)2L
FUELFuel Tank Capacity (L)13L
Fuel Consumption (km/L)7L/100KM for caburetor, and 5.5L/100KM for E-injection
ELECTRICAL SYSTEMStarter (Type)E-start
Battery Capacity (V/AH)12V 20AH
Sparkplug TypeD8RTC
TRANSMISSIONTransmission TypeShaft drive
Drive wayhalf shaft
CHASSISDimensions, LxWxH (mm)2040×1140×1220
Wheelbase (mm)1350
Seat Height (mm)800
Ground Clearance (mm)300
Net Weight (F/R) (kg)280
Max. Carrying Capacity (F/R) (kg)225
SUSPENSIONType Front (incl axle travel - mm)Double A Independent suspension
Type Rear (incl axle travel - mm)Double A Independent suspension
WHEELSType FrontIron/Aluminium wheel
Type RearIron/Aluminium wheel
Rim Size Front12×8
Rim Size Rear12×10
Tyres Front25×8-12
Tyres Rear25×10-12
BRAKESType Front (incl calipers - mm)Hydraulic disc brake
Type Rear (incl calipers - mm)Hydraulic disc brake
CONTAINER LOADING QTY.1*20’GP10units
1*40’HQ33units


The Explorer 400 ATV Quad bike is a versatile and powerful all-terrain vehicle designed for adventure enthusiasts, outdoor workers, and recreational riders. With its robust build, advanced features, and reliable performance, the Explorer 400 has become a popular choice for those seeking a durable and capable quad bike for various applications. Whether you're navigating rugged trails, tackling challenging terrains, or simply enjoying a day out in the wilderness, the Explorer 400 Atv Quad Bike is engineered to deliver an exceptional riding experience.

Design and Build Quality

The Explorer 400 ATV Quad Bike boasts a rugged and sturdy design, making it suitable for a wide range of terrains and conditions. Its frame is constructed from high-quality materials, ensuring durability and longevity even in the toughest environments. The quad bike features a sleek and modern design, with ergonomic handlebars and a comfortable seat that allows riders to maintain control and comfort during long rides.

One of the standout features of the Explorer 400 is its suspension system. Equipped with independent front and rear suspension, the quad bike provides a smooth and stable ride, even on uneven and rocky surfaces. This suspension system not only enhances the overall riding experience but also reduces the impact on the rider, making it ideal for extended periods of use.

Engine and Performance

At the heart of the Explorer 400 ATV Quad Bike is a powerful 400cc engine that delivers impressive performance and reliability. This engine is designed to provide ample torque and horsepower, allowing the quad bike to tackle steep inclines, muddy trails, and other challenging terrains with ease. The engine is also fuel-efficient, ensuring that riders can cover long distances without frequent refueling.

The Explorer 400 is equipped with a smooth and responsive automatic transmission, making it easy for riders of all skill levels to operate. Whether you're a seasoned rider or a beginner, the automatic transmission ensures that you can focus on the ride without worrying about shifting gears. Additionally, the quad bike features a selectable 2WD/4WD system, allowing riders to switch between two-wheel drive and four-wheel drive depending on the terrain and conditions.

Off-Road Capabilities

The Explorer 400 ATV Quad Bike is built for off-road adventures, and its capabilities are truly impressive. The quad bike features large, knobby tires that provide excellent traction on a variety of surfaces, including dirt, mud, sand, and gravel. These tires, combined with the quad bike's high ground clearance, allow riders to navigate obstacles and rough terrains with confidence.

For those who enjoy exploring remote and challenging locations, the Explorer 400 is equipped with a winch. This winch can be used to pull the quad bike out of difficult situations, such as deep mud or steep inclines, ensuring that riders can continue their journey without getting stuck. The quad bike also features a durable and reliable braking system, with front and rear hydraulic disc brakes that provide excellent stopping power in all conditions.

Comfort and Convenience

The Explorer 400 ATV Quad Bike is designed with the rider's comfort and convenience in mind. The quad bike features a spacious and comfortable seat that provides ample support for long rides. The handlebars are ergonomically designed and adjustable, allowing riders to find the perfect riding position for their height and preferences.

In addition to its comfortable seating, the Explorer 400 is equipped with a range of convenient features. The quad bike features a digital display that provides essential information such as speed, fuel level, and engine temperature. This display is easy to read, even in bright sunlight, ensuring that riders can stay informed about their quad bike's performance at all times.

For those who need to carry equipment or supplies, the Explorer 400 is equipped with a rear cargo rack. This rack provides ample space for storing tools, gear, or other items, making the quad bike a practical choice for outdoor workers and adventurers alike. Additionally, the quad bike features a front storage compartment, providing even more space for essential items.

Safety Features

Safety is a top priority for the Explorer 400 ATV Quad Bike, and it is equipped with a range of features to ensure the rider's safety on the trails. The quad bike features a roll cage that provides added protection in the event of a rollover or accident. This roll cage is constructed from strong and durable materials, ensuring that it can withstand the impact of a fall or collision.

The Explorer 400 is also equipped with a kill switch, which allows riders to quickly shut off the engine in case of an emergency. This switch is easily accessible, ensuring that riders can react quickly to any potential hazards. Additionally, the quad bike features a parking brake, which prevents the quad bike from rolling away when parked on an incline.

Maintenance and Durability

The Explorer 400 ATV Quad Bike is designed to be low-maintenance and durable, making it a reliable choice for long-term use. The quad bike's engine is built to withstand the rigors of off-road riding, and its components are designed to be easy to access and replace. This ensures that riders can perform routine maintenance and repairs without the need for specialized tools or extensive mechanical knowledge.

The quad bike's frame and body are constructed from high-quality materials that are resistant to rust and corrosion, ensuring that the Explorer 400 remains in excellent condition even after years of use. Additionally, the quad bike's tires are designed to be puncture-resistant, reducing the likelihood of flat tires and ensuring that riders can continue their journey without interruption.

Conclusion

The Explorer 400 ATV Quad Bike is a powerful, versatile, and reliable all-terrain vehicle that is perfect for adventure enthusiasts, outdoor workers, and recreational riders. With its rugged design, advanced features, and impressive performance, the Explorer 400 is capable of tackling a wide range of terrains and conditions with ease. Whether you're exploring remote trails, working on a farm, or simply enjoying a day out in the wilderness, the Explorer 400 ATV Quad Bike is a dependable and enjoyable choice for all your off-road adventures.
